Better Music Builder is excited to introduce the next generation of the Classic Series speaker, the CS-612 G5.
The high performance speaker uses dynamic audio computer simulation design technology. It enables the speaker to produce high quality sound, precise clarity and strong reliability. These speakers are made using high temperature treated magnesium diaphragm, voice coil with copper cladding aluminum wire, and compression cavity designed with linear phase technology. Its featured magnetic circuit tweeter generates high magnetic energy, low distortion, excellent ventilation function, and high strength plywood that can absorb unwanted noise for high performance.
Utilizing the added mid frequency tweeter, the 3-way speaker delivers a new dimension to its dynamic sound. The midrange driver is a very significant part of the audio sound spectrum as it creates sounds which are most familiar to the human ear such as musical instruments and human voice.
- 3-Way Full Range PVC/Plywood Speaker
- 3"x2 tweeters [paper cone high frequency drivers]
- 4"x2 tweeters [paper cone middle frequency drivers]
- 12"x1 woofer [low frequency woofer]
- High output SPL and sensitivity
- Copper wired voice coil

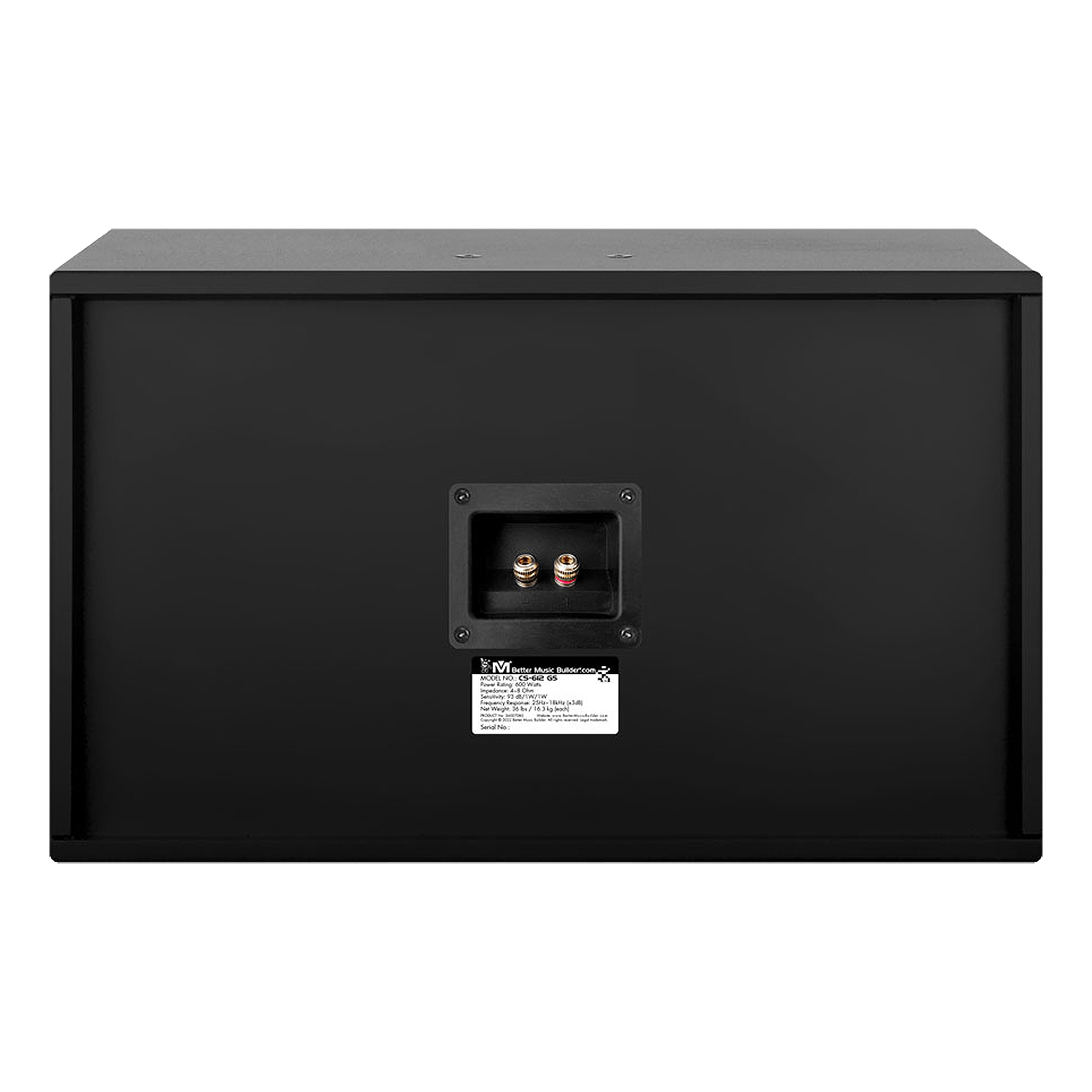

- Speaker input terminal (banana plug or insert type)
- Frequency response 25Hz~18kHz
- Sensitivity 93dB
- Front grill adjustable 180 degrees
- Cabinet design for FOH use
- Flexible and easy-to install configurations (wall, ceiling, under balcony)
- Type: Front (3-Way Full Range)
- Max. Power Handling: 600 Watts
- Cabinet Type: PVC, Plywood
- Supported Fixture: Ceiling, Wall Mount, Floor Stand
- Woofer: 12 inches (1 unit)
- Tweeter: 3 inches (2 units: High Frequency x 2) / 4 inches (2 units: Middle Frequency x 2)
- Rated Impedance: 8 ohms
- Frequency Response: 25Hz ~ 18kHz ( ± 3 dB)
- Sensitivity: 93 dB/1W/1M
- Crossover Frequency: LF: 300Hz / HF: 6.3kHz
- Dimension (WxHxD): 24.1 x 13.8 x 13.6 in / 61.2 x 35 x 34.5 cm (each)
- Packing Dimension (WxHxD): 16.5 x 28 x 15.8 in / 41.9 x 71.1 x 40 cm (each)
- Net Weight: 36 Lbs / 16.3 Kg (each)
- Shipping Weight: 41.6 Lbs / 18.9 Kg (each)
- UPC Code: 743062981664
